SmartLyte Plus

The SMARTLYTE® PLUS Electrolyte Analyzer is designed to conduct basic electrolyte analysis accurately, efficiently and quickly in the convenience of the laboratory.
This manual will help guide you through setting up the analyzer and starting sample analysis. As the user becomes familiar with the operation of the unit, the manual is a useful reference for day-to-day routines and as a guide for maintenance and troubleshooting. More information

 Diamond Diagnostics Catalog


 2020-2021 Consumables




--------------------------------------------------------------------------------------------------------

Chemistry Analyzers

Quality Lab Supplies NV advises and mediates in the purchase of laboratory equipment. We guarantee the best analyzers in your laboratory. After sale service and continuity of reagents and parts for any repairs are also part of our service.

Name it, and we deliver it!!

--------------------------------------------------------------------------------------------------------

ErbaChemistry Analyzers

We are distributor of ErbaXL-series Clinical Chemistry analyzers:

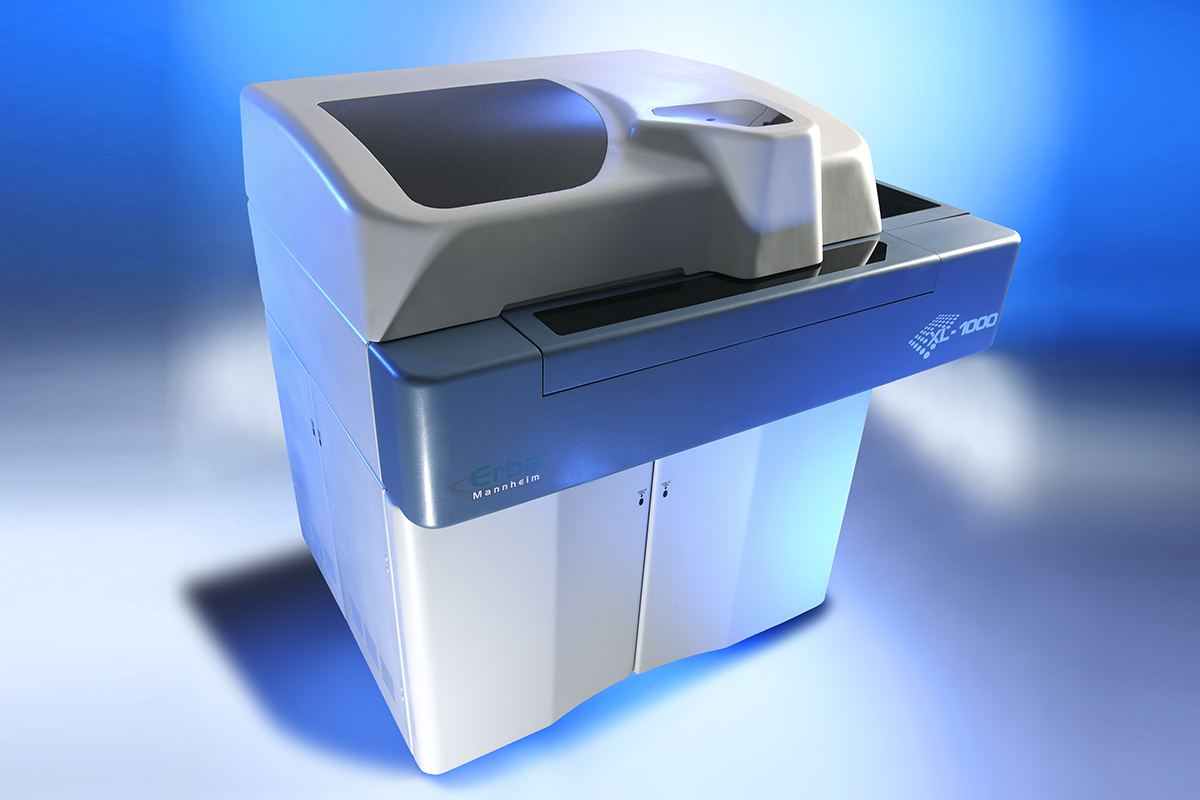

XL 1000

XL 1000 – new member of XL family, modern, fully automated Clinical Chemistry analyzer guaranteeing  high resolution measurement with automatic sample conveyor for comfortable workflow in laboratories with high sample throughput. Analyzer XL 1000 enables throughput of 800 tests/hour and up to 1040 tests/hour with ISE (Na/K/Cl/Li)

SYSTEM
  • Discrete, open, automated, random access, patient prioritized, 1/2/3 reagent system
  • DISPENSING OF SAMPLES AND REAGENTS
  • Sample volume: 2-60 µl (0.1 µl step), 70 µl with ISE
  • Reagent volume: 120 µl – 550 µl
  • 3 dispensing probes ( R1, R2/R3) equipped with liquid -level sensor and crash detector
  • Auto-dilution of samples and calibrators
  • Clot detection
SAMPLES
  • Serum, urine, plasma, CSF and other
ECONOMY
  • Minimum reaction volume: 180 µl
  • Reusable reaction cuvettes
MIXING SYSTEM
  • 2 independent stirrers
  • 3 user selectable mixing speeds
QUALITY CONTROL
  • 4 levels of control material can be used
  • Levey-Jennigs graphs
  • Twin Plot diagrams for monitoring of systematic and random error
REACTION UNIT WITH WASH STATION
  • 147 reusable hard glass cuvettes
  • Possibility of replacement of individual cuvette
  • Wash station – cuvette rinsing and drying in nine-step procedure
  • Automatic cuvette blank measurement before analysis
SAMPLE AUTOLOADER
  • 23 racks
  • 115 sample  positions on automatic autoloader
  • Primary tubes 5, 7 and 10 ml, vacuum system tubes
  • Barcode reader for sample identification
2 REAGENT  TRAYS
  • With 43 cooled position each
  • Barcode reader for reagent  identification
  • 20 ml, 50 ml reagent containers, 5 ml tube with adaptor
  • Option to use one reagent for several test simultaneously
STAT  TRAY
  • 45 positions
  • Can be used for blank, controls, STAT samples
SOFTWARE
  • Convenient user interface
  • Connection to LIS
  • Programmable auto-start from sleep mode including automatic daily maintenance
  • Statistical methods of processing results
  • Data export in selected format
MEASUREMENT MONITORING
  • Colour indication of sample analysis
  • Possibility of monitoring the reaction in real time
  • Reagent volume monitoring
  • Informative reports on ongoing analyzer status

XL 640

Fully automated Clinical Chemistry analyzer with throughput of 640 tests/hr with I.S.E (Na/K/Cl/Li) and diffraction grating for high resolution measurement. On board are 50 samples and 56 refrigerated reagent positions with STAT facility. XL 640 features extensive quality control, user friendly and low consumption service.

DISPENSING OF SAMPLES AND REAGENTS
  • Sample volume: 2-70µl (0.2 µl step)
  • Reagent volume: R1 50-300 ul (1 µl step), R2 10-300 ul (1 µl step)
  • 3 dispensing probes (sample, R1, R2) equipped with liquid -level sensor and crash detector
  • Auto-dilution of samples and calibrators
  • Clot detection
ECONOMY
  • Minimum reaction volume: 180 µl
  • Reusable reaction cuvettes
MIXING SYSTEM
  • 2 independent stirrers
  • 3 user selectable mixing speeds
QUALITY CONTROL
  • 4 levels of control material can be used
  • Levey-Jennigs graphs
  • Twin Plot diagrams for monitoring of systematic and random error
REACTION UNIT WITH WASH STATION
  • 72 reusable hard glass cuvettes
  • Possibility of replacement of individual cuvette
  • Wash station – cuvette rinsing and drying in eight-step procedure
  • Automatic cuvette blank measurement before analysis
SAMPLE TRAY
  • 80 positions for samples, blanks, standards, calibrators, controls and ISE solutions
  • Primary tubes 5, 7 and 10 ml, vacuum system tubes and cups
  • STAT sample with priority in any position
  • Additional tray for 80 samples included
REAGENT TRAY
  • 56 positions, 20 ml, 50 ml reagent containers, 5 ml tube with adaptor
  • Reagent compartment with Peltier/air cooler (8-12°C)
  • Option to use one reagent for several test simultaneously
SOFTWARE
  • Convenient user interface
  • Connection to LIS
  • Programmable auto-start from sleep mode including automatic daily maintenance
  • Statistical methods of processing results
  • Data export in selected format
MEASUREMENT MONITORING
  • Colour indication of sample analysis
  • Possibility of monitoring the reaction in real time
  • Reagent volume monitoring
  • Informative reports on ongoing analyzer status


XL 400


Fully Automated Random Access Clinical Chemistry Analyzer with a throughput of 200 tests/hr (photometric test) and 400 tests/hr with ISE (Na/K/Cl/Li). 30 Position Reagent Tray with On-board cooling, convenient software and extensive quality control menu.

DISPENSING OF SAMPLES AND REAGENTS
  • Sample volume: 2-70 µl (in 0,2 µl step)
  • Reagent volume: R1 50-300 µl (in 1 µl step), R2 10-200 µl (in 1 µl step)
  • Dispensing probe equipped with liquid -level sensor and crash detector
  • Auto-dilution of samples and calibrators
ECONOMY
  • Minimum reaction volume: 180 µl
  • Reusable reaction cuvettes
MIXING SYSTEM
  • Independent stirrers
  • 3 user selectable mixing speeds
QUALITY CONTROL
  • 4 levels of control material can be used
  • Levey-Jennings graphs
  • Twin Plot diagrams for monitoring of systematic and random error
REACTION UNIT
  • 45 reusable hard glass cuvettes
  • Possibility of replacement of individual cuvette
  • Wash station – cuvette rinsing and drying in 8 steps
  • Automatic cuvette blank measurement before analysis
  • Reaction temperature 37°C ± 0,2°C
SAMPLE TRAY
  • 39 positions for samples, blanks, standards, calibrators, controls and ISE solutions
  • Primary tubes 5, 7 and 10 ml, vacuum system tubes and cups
  • STAT sample with priority in any position
  • Possibility of programming up to 99 virtual trays
REAGENT TRAY
  • 50 positions, 20 ml, 50 ml reagent containers, 5 ml tube with adaptor)
  • Reagent compartment with Peltier/air cooler (8-12°C)
  • Option to use one reagent for several tests simultaneously
SOFTWARE
  • Convenient user interface
  • Connection to LIS
  • Statistical methods of processing results
  • Data export in selected format
MEASUREMENT MONITORING
  • Color indication of sample analysis
  • Possibility of monitoring the reaction in real time
  • Reagent volume monitoring
  • Informative reports on ongoing analyzer status

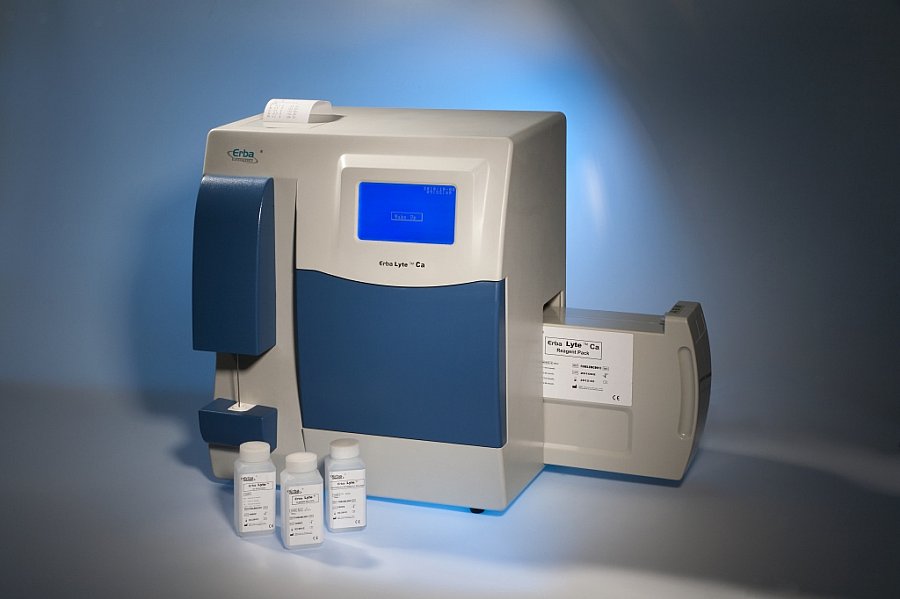

ErbaLyte

Automatic electrolyte analyzer ErbaLyte Series

The ERBA LYTE series of electrolyte analyzers are automated,microprocessor controlled analytic analyzers that use ISE (Ion Selective Electrode) technology for the measurement of ions - potassium (K), sodium (Na), chloride (Cl), calcium (Ca), lithium (Li), pH and HCO3-(CO2) in human body fluids. Product Description:
The analyzer consists of electrochemical sensors,pressure sensors, microprocessor system, control system, auto sampling system, auto washing system and reagent kits including standard A, standard B, and other standards, where required. Product Features:
Low sample volume: 150ul per test only Touch Screen User friendly software Low cost per test Auto standby mode On board Inventory management Auto sampler (optional) Long life electrodes Principle: Direct measurement by Ion Selective Electrode (ISE) Paramteres: Na, K Na , K, Cl Na, K, Li Na, K, Cl, Li Na, K, Ca, pH Na, K, Ca, pH, Cl Na, K, CO2, Cl Na, K, Ca, Cl, CO2, pH Throughput: 60 samples / hour Sample type: Whole Blood, Serum, Plasma, Diluted Urine Sample volume: 150 ul Calibration: 1 point or 2 point calibration at adjustable time interval Data storage: Up to 200 patient results
